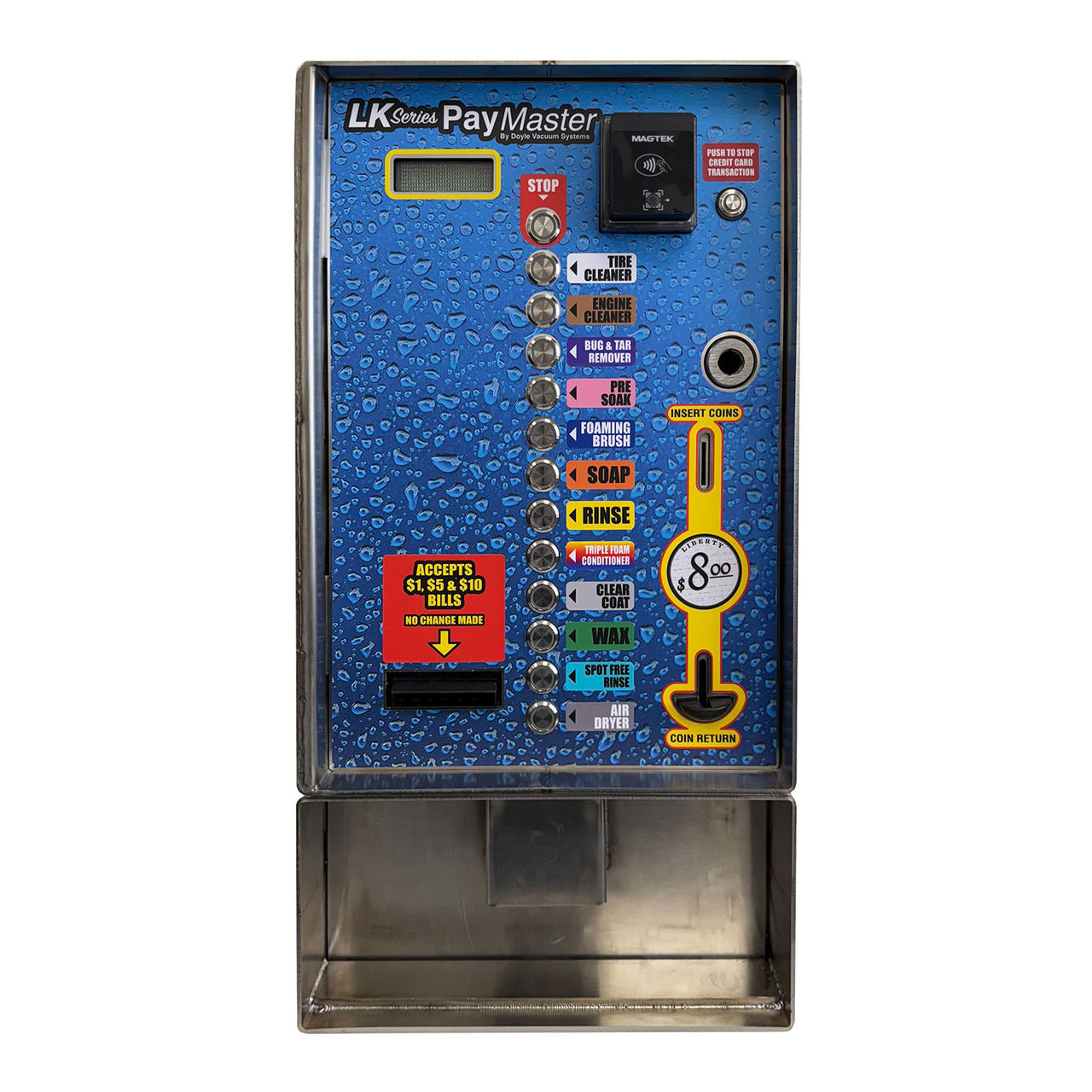

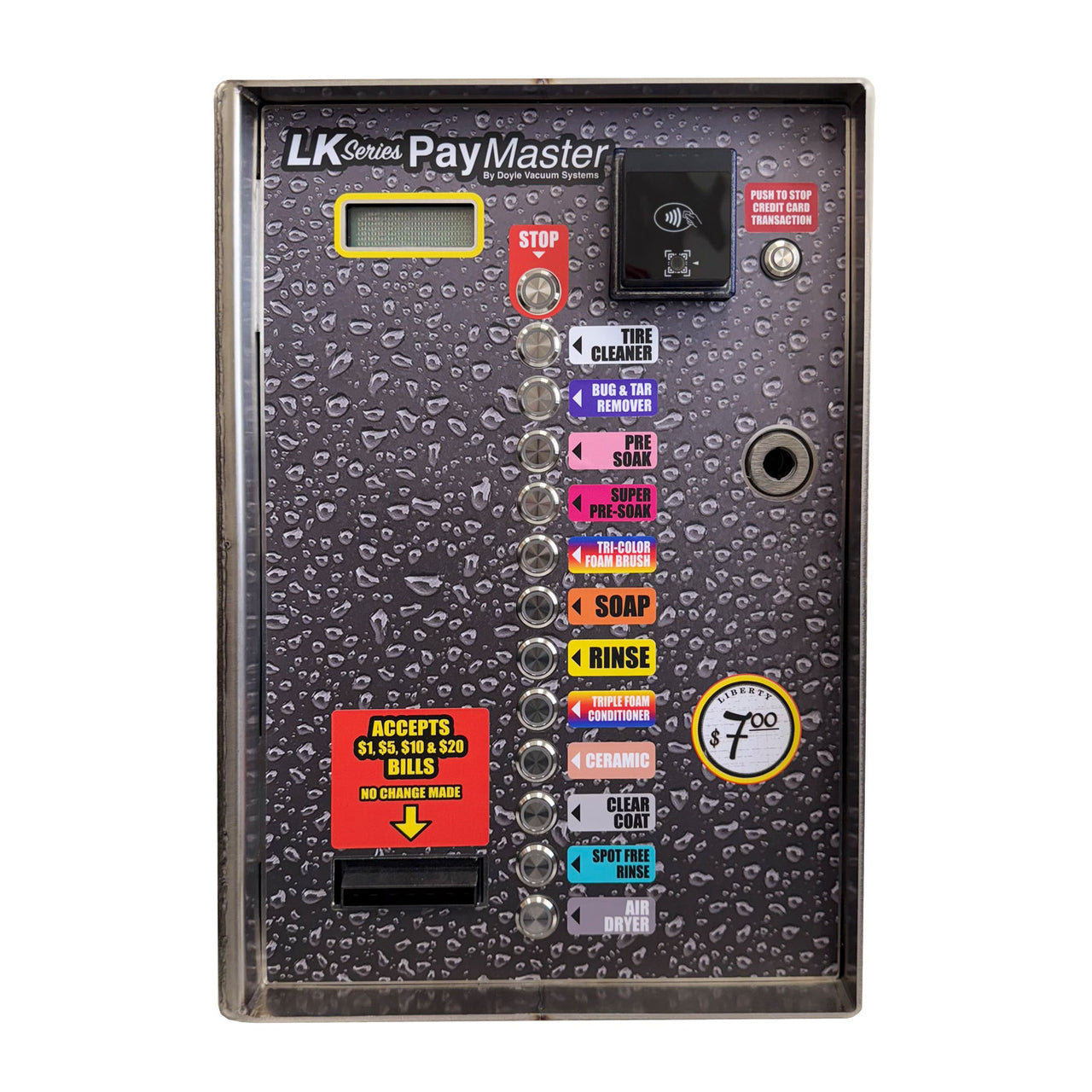

LK Series PayMaster Meter Box

Thanks for your interest in this Doyle Vacuum product. Products are not available for purchase online. Please call us at 616-554-9555 to learn more or to purchase.

Standard Features:

  • 12 Functions, Plus Stop
  • Meter Box w/o Coin Vault (12.75” Wide x 18.25” High x 9.0”
    Deep)
  • Meter Cox w/ Coin Vault (12.75” Wide x 24.25” High x 9.0”
    Deep)
  • 10 Gauge Stainless Steel Construction, Optional Coin Vault
    Bolts On
  • Hex Screw with Medeco Plug Lock in Meter Box, and Master
    Lock Puck Lock for Vault
  • Optional Coin, Bill, and CC acceptance

Other Standard Features:

  • B&C Electronic Engineering Push-Button Controller with
    Outputs for 12 Functions, plus Stop, and 3 Auxiliary Outputs.
    Auxiliary Outputs can be Programmed to be active with any
    Function, in any Combination from 1 to 3
  • B&C Electronic Engineering CJX Display Timer with Count-Up
    or Count-Down Capability when using CC
  • High-Quality EAO Ring Illuminated Momentary Push-Button
    Switches with Excellent Tactile Feedback. IP67 Rated, Vandal
    Resistant, and Rated for over one Million Cycles.
  • Last Coin Alert Horn
  • High Quality Graphics with Polycarbonate Overlays and
    Function Inserts and other Operational Inserts for Bill
    Acceptance and CC Acceptance

Optional Features:

  • CPI T12-U3E Bill Acceptor capable of Accepting $1, $2, $5, $10
    and $20
  • Credit Card Acceptance: Various Options as Requested
  • Coin Acceptance: Various Options as Requested
  • Box Heater with Thermostat for operation below 35 degrees

Download printable Spec Sheet here.
